824mm Galvanised Steel Walkway Grating Steel Grating Panels Step Steel Frame Lattice

Brand Name : RAYMOND

Certification : ISO

MOQ : 25MT

Price : 600-800 usd/mt

Payment Terms : L/C, T/T

Supply Ability : 50000mt/year

Delivery Time : 15-30days

Name : Hot dipped galvanzied steel grating

Certificate : ISO 9001:2008

Size : 30*20

Width : Min 824mm

Technique : knit

Application : Structure

Contact Now

ASTM 123 30*25 STEEL GRATING FOR STAIRS METAL BUILDING

Specifications of steel gratings
Item Description
Bearing bar 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.
Bearing bar pitch 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.
Cross bar 5x5, 6x6, 8x8mm (twisted bar or round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement.
Surface treatment Untreated, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement.
Flat bar type Plain, Serrated (tooth-like), I bar (I section)
Material standard Low carbon steel (CN: Q235, US: A36, UK: 43A)
Galvanization standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Steel grating standards A. China: YB/T4001-1998
B. USA: ANSI/NAAMM (MBG 531-88)
C. UK: BS4592-1987
D. Australia: AS1657-1988
E: Japan: JJS

Features
824mm Galvanised Steel Walkway Grating Steel Grating Panels Step Steel Frame Lattice

1, The solid grid pressure welding structure makes it has the characteristics of high load bearing, high strength, light
structure, easy to lift and so on.
824mm Galvanised Steel Walkway Grating Steel Grating Panels Step Steel Frame Lattice

2,Beautiful appearance, durable: hot dip zinc surface treatment makes it has quite good anti-corrosion ability, the surface luster is beautiful.
824mm Galvanised Steel Walkway Grating Steel Grating Panels Step Steel Frame Lattice

3, Ventilation, lighting, heat dissipation, explosion-proof, anti-skid performance is good.
824mm Galvanised Steel Walkway Grating Steel Grating Panels Step Steel Frame Lattice

4,No dirt, no rain and snow, no water, self-cleaning, easy

Applications

824mm Galvanised Steel Walkway Grating Steel Grating Panels Step Steel Frame Lattice

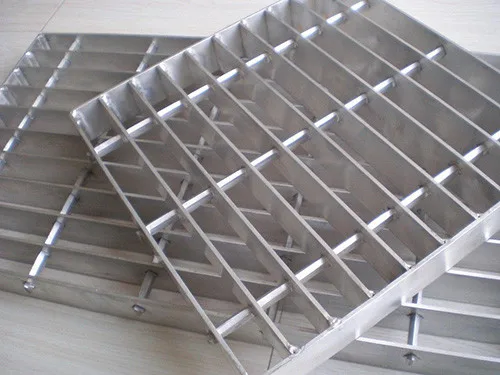

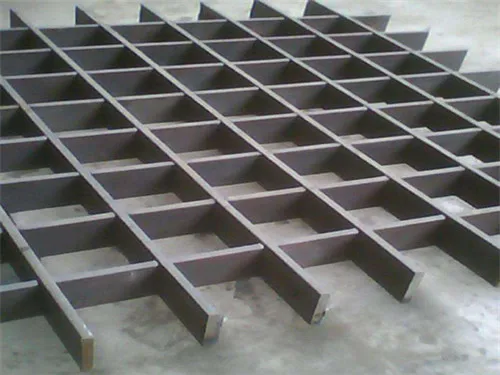

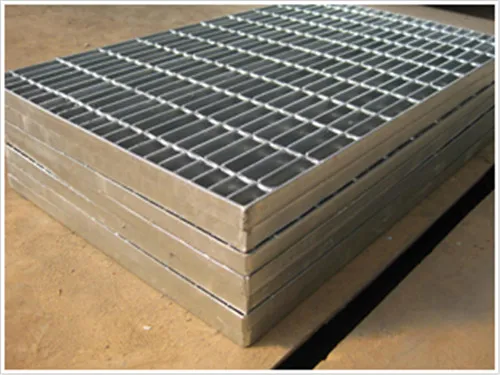

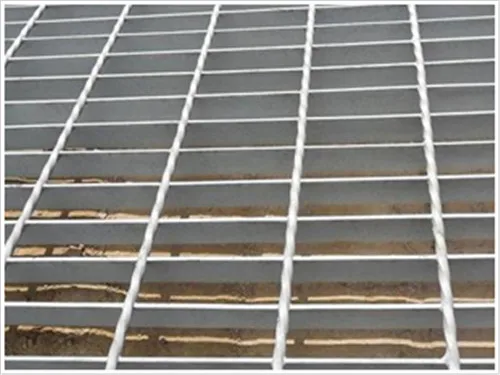

Product Pic

824mm Galvanised Steel Walkway Grating Steel Grating Panels Step Steel Frame Lattice
